Concept

First, we need to understand the purpose of DataStore.

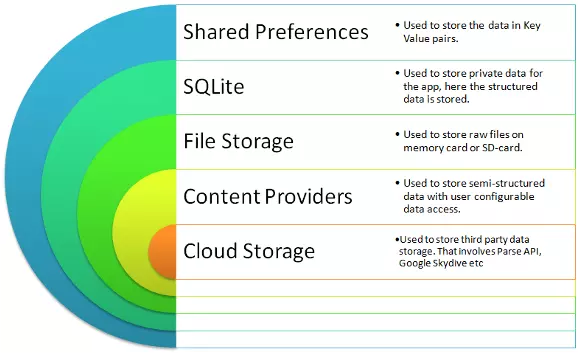

Currently, in Android apps, there are 5 ways to store data, with SharedPreferences being the simplest for storing data. It only consists of key and value, where the value can be an integer, string, etc.

Storage

When the app is opened for the first time, it reads all values from the SharedPreferences XML file and loads them into RAM. This file reading process happens on the UI Thread. If there are too many values and the task takes more than 5 seconds, it will cause an ANR (Application Not Responding) error.

And DataStore was created to replace SharedPreferences.

DataStore is a solution for storing data as key-value pairs or typed objects with protocol buffers.

Of course, DataStore is still only for storing simple structured data. It uses Coroutines and Flow to store data asynchronously and consistently.

DataStore has 2 types: Preferences DataStore and Proto DataStore. Let’s look at the comparison table:

Preferences DataStore	Proto DataStore
Store and access data by key	Store instances of a custom data type
No need to define data type in advance	Must define data type in advance with protocol buffers
No type safety	Has type safety

Preferences DataStore

Create

To use Preferences DataStore, we need to create an instance of DataStore<Preferences> using a property delegate with the preferencesDataStore keyword.

1
2
3
// At the top level of your kotlin file
val Context.dataStore: DataStore<Preferences>
        by preferencesDataStore(name = "settings")

Read

First, there are 7 functions corresponding to 7 data types:

intPreferencesKey()
longPreferencesKey()
doublePreferencesKey()
floatPreferencesKey()
booleanPreferencesKey()
stringPreferencesKey()
stringSetPreferencesKey()

When reading data, use the function corresponding to the value you want to store. For example, to store a counter variable as an integer to count how many times the user opens the app:

1
2
3
4
5
6
val OPEN_APP_COUNTER = intPreferencesKey("open_app_counter")
val openAppCounterFlow: Flow<Int> = context.dataStore.data
   	.map { preferences ->
    	// No type safety.
    	preferences[OPEN_APP_COUNTER] ?: 0
    }

The difference from SharedPreferences is that here, data is returned as a Flow. Now, upper layers like Repository can observe data consistently, regardless of whether it comes from DataStore, Room database, or Server, because everything is returned as a Flow.

Write

To write data, use the edit function, which is quite similar to SharedPreferences.

1
2
3
4
context.dataStore.edit { settings ->
    val openAppCounterValue = settings[OPEN_APP_COUNTER] ?: 0
    settings[OPEN_APP_COUNTER] = openAppCounterValue + 1
}

Proto DataStore

Before learning about Proto DataStore, let’s take a look at protocol buffers.

Protocol buffers

This is a data format that is independent of programming language or platform. It’s like JSON but much smaller and faster. Protocol buffers are also said to be the most widely used data format at Google.

Used to store compact data
Fast parsing
Supports many programming languages like C++, C#, Dart, Go, Java, Kotlin, Python
Optimizes functionality through auto-generated classes

For example, a message about user info with name, id, and email:

1
2
3
4
5
message UserProfile {
  optional string name = 1;
  optional int32 id = 2;
  optional string email = 3;
}

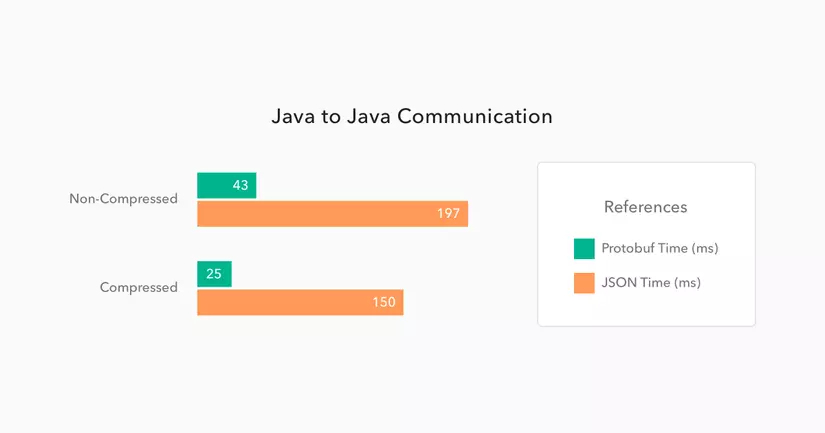

To compare the performance of Protocol buffers and JSON, let’s make 500 GET requests from one Spring Boot app to another, with and without data compression. Here are the results:

Protobuf

We can see Protocol buffer is 5 to 6 times faster than JSON.

Create

To use Proto DataStore, you must define the data type with a proto file settings.pb in the folder app/src/main/proto/ like this:

1
2
3
4
5
6
syntax = "proto3";
option java_package = "com.example.application";
option java_multiple_files = true;
message Settings {
  	int32 open_app_counter = 1;
}

Next, declare an object implementing the Serializer<T> class, where T is the data type defined in the proto file.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
object SettingsSerializer : Serializer<Settings> {
  override val defaultValue: Settings = Settings.getDefaultInstance()

  override suspend fun readFrom(input: InputStream): Settings {
    try {
      return Settings.parseFrom(input)
    } catch (exception: InvalidProtocolBufferException) {
      throw CorruptionException("Cannot read proto.", exception)
    }
  }

  override suspend fun writeTo(
    t: Settings,
    output: OutputStream
  ) = t.writeTo(output)
}

Finally, use the property delegate with the dataStore keyword to create an instance of DataStore<T>.

1
2
3
4
val Context.settingsDataStore: DataStore<Settings> by dataStore(
  fileName = "settings.pb",
  serializer = SettingsSerializer
)

Read

Similar to Preferences DataStore, use DataStore.data to return a Flow.

1
2
3
4
5
val openAppCounterFlow: Flow<Int> = context.settingDataStore.data
  .map { settings ->
    // The openAppCounter is generated from the proto schema.
    settings.openAppCounter
  }

Write

To write data to Proto DataStore, use the updateData() function.

1
2
3
4
5
context.settingsDataStore.updateData { currentSettings ->
  currentSettings.toBuilder()
    .setExampleCounter(currentSettings.exampleCounter + 1)
    .build()
}

Comparison with SharedPreferences

Comparison

Migrate from SharedPreferences to Preferences DataStore

To migrate, pass SharedPreferencesMigration to the produceMigrations parameter. DataStore will automatically migrate for you.

1
2
3
4
5
6
7
8
9
val Context.dataStore: DataStore<Preferences> by preferencesDataStore(
  name = DATA_STORE_NAME
  produceMigrations = { context ->
    listOf(SharedPreferencesMigration(
      context,
      SHARED_PREFERENCES_NAME
    ))
  }
)

Migrate from SharedPreferences to Proto DataStore

First, declare UserProfile and UserProfileSerializer as above. Then write a mapping function to migrate from key-value pairs in SharedPreferences to the data type in Proto DataStore.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
val Context.dataStore: DataStore<UserProfile> by dataStore(
  fileName = "settings.pb",
  serializer = UserProfileSerializer,
  produceMigrations = { context ->
    listOf(
      SharedPreferencesMigration(
        context,
        "settings_pref"
      ) { prefs: SharedPreferencesView, user: UserProfile ->
        user.toBuilder()
            .setName(prefs.getString(NAME_KEY))
            .setId(prefs.getInt(ID_KEY))
            .setEmail(prefs.getString(EMAIL_KEY))
            .build()
      }
    )
  }
)
